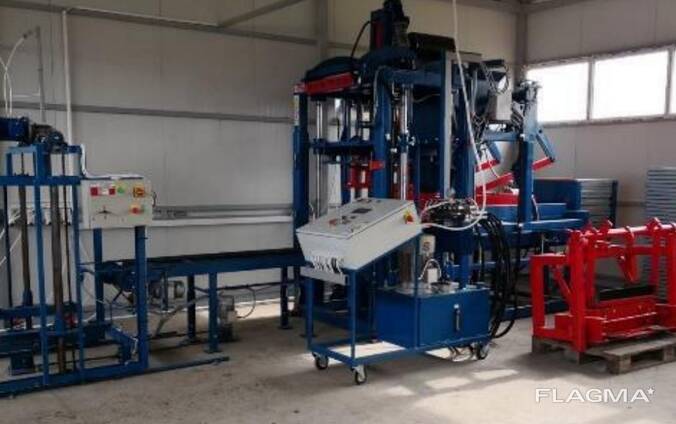

Vibratory press Stationary SUMAB SVEMLO 120 m2.

Vibration press Stationary SUMAB SVEMLO 120.

Purpose of the equipment:
Production of paving slabs, production of curbs, production of concrete blocks, chimney elements, gutters, etc.

Advantages:
Powerful vibration provided by two electric motors;
The punch is equipped with two vibration motors;
Electrical components of control and management Schneider Electric;
Our wide range of molds can provide diversification of production;
Reliable mechanical and hydraulic systems;

Technical features:
Components: press (vibration pressing unit), storage space for wooden pallets, pallet feeding line, hopper and box for feeding sand-cement mixture, pallet unloading line with fresh products, hydraulic station, electrical control panel.

Pallet size: 700x670x40 mm.
Useful surface: 630x630 mm.
Minimum/maximum height of finished product: 40 mm/250 mm.
Vibration frequency: 3000 rpm.
Vibrating table: 2 vibrators.
Punch: 2 vibrators.
Cycle time: 35–60 seconds;
Installed power: 15.50 kW.
Power supply voltage: 380 V.
Hydraulic unit: pump with a capacity of 30 l/min; electric motor: 7.5 kW
Overall dimensions: 1.60 x 5.60 x 3.10 m.
Weight: 4,000.00 kg.

Maximum productivity:
Tiles (100*200*60 mm): 120 m2/8 h;
Curbs (500*100*150 mm): 1920 pcs/8 h;
Blocks (200*200*400mm): 1440 pcs/8h;

To achieve maximum productivity of the stationary vibrating press SUMAB SVEMLO 320, you can purchase the following equipment and accessories:

Concrete plant;
Belt conveyor;
Molds for various types of concrete products;
Technological pallets;
Crane for handling finished (dry) products;
Additional equipment and mixer for the facing layer;

Concrete plant SUMAB SVEMLO 700:
Inert material bins
Gravel storage bin – capacity 8m3
Sand storage bin – capacity 8m3
Electric vibrator motor facilitating filler feeding
Conveyor for feeding inert materials into the mixer
Length 6m
Engine 1.5 kW (380 V)
PLC controls volumetric dosing.

Vertical mixer 700 liters;
Walls and bottom covered with armor;
Hydraulic opening control;
Dosing of water and additives;

Useful volume: 500 liters
Rotation speed: 32 rpm.
Electric motor: 22 kW (380 V)
Dimensions: 2.10 x 2.30 x 2.60 m
Weight: 2700 kg.

Cement scales - 300 kg capacity
Flow supported by compressor.

Cement feed screw
Length: 5.6 m; motor 2.2 kW, diameter 139 mm
Feeding cement into the mixer

Conveyor belt for feeding concrete
Length 6 m
Motor 1.5 kW (380 V)
Moves concrete from the mixer to the machine hopper.

Cabin with PLC control panel - Mitsubishi PLC;
- Automatic or manual control;
Capacity: 6 m3/h

Cement silo for concrete plant
- Capacity: 24 m3

- The silo is equipped with a pressure relief valve, low volume indicator and fluidizer.
- Inner diameter 2500 mm;
- Height of cylindrical shell 4500 mm;
- Height of conical bottom 1700 mm;
- Overall height, incl. railing 8700 mm.
