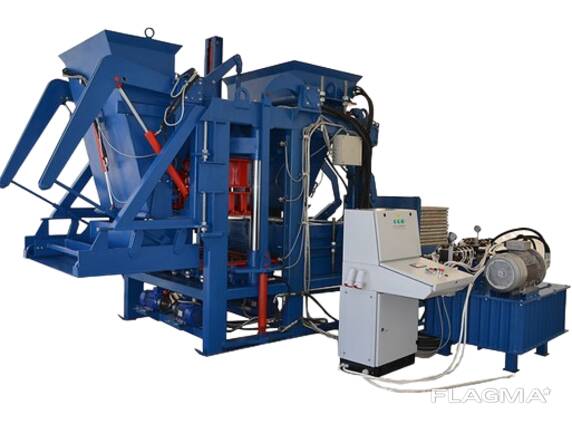

Block machine stationary SUMAB SVEMLO 320 m2

Block machine stationary SUMAB SVEMLO 320 m2

Purpose of the equipment:
Production of paving slabs, production of curbs, production of concrete blocks, chimney elements, gutters, etc.

Advantages:
Fully automatic equipment, Mitsubishi Electric PLC;
Can produce two-layer tiles and curbs;
Powerful vibration provided by 4 electric motors and 2 vibration mechanisms;
Additional vibrators in the upper part of the punch;
Additional hopper for the face layer;
Our wide range of molds can provide diversification of production;
Reliable mechanical and hydraulic systems;
High productivity in its class - molding area of 1.10 x 0.63 m;
Reliable mechanical and hydraulic systems;
Wide range of moulds;
Quick and easy mould change (2 hours);
High quality components from trusted partners;

Technical features:
Components: press (vibration pressing unit), pallet magazine, pallet feeding line, hopper and box for feeding mould with concrete for the base and face layer, pallet unloading line with fresh products, lift, hydraulic group, control panel.

Characteristics:
Pallet dimensions: 1250x740x45 mm.
Molding area: 1100x630 mm.
Minimum/maximum height of finished product: 40 mm/250 mm.

Vibration frequency: 3000 rpm.
Cycle duration: 35 – 60 seconds;
Installed capacity: 30.00 kW
Power voltage: 380 V
Overall dimensions: 8x2.10x3.10 m
Net weight: 6000.00 kg
Concrete consumption: 4 m3/hour

Maximum productivity:
Tiles (100*200*60 mm): 320 m2/8 hours;
Curbs (500*100*150 mm): 4800 pcs/8 hours;
Blocks (200*200*400 mm): 3600 pcs/8 hours;

To achieve maximum productivity of the stationary vibrating press SUMAB SVEMLO 320, you can purchase the following equipment and accessories:
Concrete plant;
Belt conveyor;
Molds for various types of concrete products;
Technological pallets;
Crane for handling finished (dry) products;
Additional equipment and mixer for the face layer;

Concrete plant SUMAB SVEMLO 700:
Capacity: 6 m3/h
Inert material bins
Gravel storage bin – capacity 8 m3
Sand storage bin – capacity 8 m3
Electric vibrator motor facilitating filler feeding
Conveyor for feeding inert materials to the mixer
Length 6 m
Motor 1.5 kW (380 V)
PLC controls volumetric dosing.

Vertical mixer 700 liters;
Walls and bottom covered with armor;
Hydraulic opening control;
Dosing of water and additives;
Useful volume: 500 liters
Rotation speed: 32 rpm.
Electric motor: 22 kW (380 V)
Dimensions: 2.10 x 2.30 x 2.60 m
Weight: 2700 kg.

Cement scale 300 kg capacity
Flow supported by compressor

Cement feed screw
Length: 5.6 m; motor 2.2 kW, diameter 139 mm
Feeding cement to the mixer

Conveyor belt for feeding concrete
Length 6 m
Motor 1.5 kW (380 V)
Transports concrete from the mixer to the machine hopper.

Cabin with PLC control panel
- Mitsubishi PLC;
- Possibility of automatic or manual control;

Cement silo for concrete plant
- Capacity: 24 m3
- The silo is equipped with a pressure relief valve, low volume indicator and fluidizer.
- Internal diameter 2500 mm;
- Height of cylindrical shell 4500 mm;
- Height of conical bottom 1700 mm;
- Overall height, incl. railing 8700 mm.
